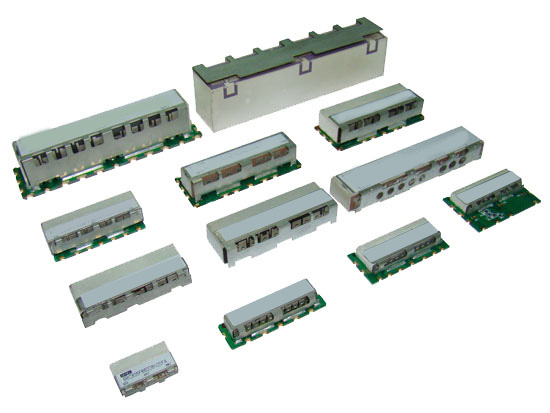

介质双工器_连体式

全国服务热线：+0086-158-62532747


特点	应用
使用高Q值谐振器获得的低损耗；	基站及直放站；
使用高介电常数材料获得更小的尺寸及更轻的重量；	PCS系统；
可靠地机械结构、无振动结构；	CDMA系统；
优良的温度稳定性；	DCS系统；
适用于表面贴装；	GSM系统；
频率范围：400～6000MHz	WCDMA系统；
功率范围：1~30W	TRS系统；
	TD-SCDMA系统；
	MMDS系统；

规格

应用系统	品名	中心频率	带宽	插损	波动	反射	衰减 (dB)					尺寸 (长 x 宽 x 高)毫米
WCDMA	827F872F10N15FA	827.5	15	3.0	1.5	18	45	@	865.0	~	880.0	30.5	x	13.3	x	5.5
		872.5	15	3.0	1.5	18	45	@	820.0	~	835.0
WCDMA	827F872F10N15FA	827.5	15	3.0	1.5	18	45	@	865.0	~	880.0	30.5	x	13.3	x	5.5
							25	@	850.0
		872.5	15	3.0	1.5	18	45	@	820.0	~	835.0
							25	@	850.0
WCDMA	827F872F10N15FD	827.5	15	3.0	2.0	14	50	@	865.0	~	880.0	30.5	x	13.3	x	5.5
							25	@	850.0
		875.5	15	3.0	2.0	14	50	@	820.0	~	835.0
							25	@	850.0
WCDMA	827F872F10N15FE	827.5	15	3.0	1.0	18	45	@	865.0	~	880.0	30.5	x	13.3	x	5.5
							25	@	850.0
		872.5	15	3.0	1.0	18	45	@	820.0	~	835.0
							25	@	850.0
WCDMA	827F872N10N15FB	827.5	15	1.8	0.8	16	55	@	865.0	~	880.0	42.5	x	18.0	x	9.5
		872.5	15	1.8	0.8	16	55	@	820.0	~	835.0
WCDMA	827F872N10N15FC	827.5	15	2.0	0.8	16	65	@	865.0	~	880.0	42.5	x	18.0	x	9.5
							35	@	850.0
		872.5	15	2.0	0.8	16	65	@	820.0	~	835.0
							35	@	850.0
WCDMA	827F872N10N15FH	827.5	15	2.2	1.0	18	60	@	865.0	~	880.0	42.5	x	18.0	x	9.5
							30	@	850.0
		872.5	15	2.2	1.0	18	60	@	820.0	~	835.0
							30	@	850.0
WCDMA	827F872R10N15FA	827.5	15	1.8	0.5	18	60	@	865.0	~	880.0	67.6	x	18.7	x	15.0
							25	@	850.0
		872.5	15	1.8	0.5	18	60	@	820.0	~	835.0
							25	@	850.0

WCDMA	830F875F10N10FB	830.0	10	3.0	1.5	18	47	@	870.0	~	880.0	30.5	x	13.3	x	5.5
		875.0	10	3.0	1.5	18	47	@	825.0	~	835.0
WCDMA	830F875F10N10FC	830.0	10	3.0	1.0	18	45	@	870.0	~	880.0	30.5	x	13.3	x	5.5
							5	@	845.0
		875.0	10	3.0	1.0	18	45	@	825.0	~	835.0
							5	@	845.0
WCDMA	830F875F10N10FE	830.0	10	3.0	1.0	18	50	@	870.0	~	880.0	30.5	x	10.7	x	5.5
		875.0	10	3.0	1.0	18	50	@	825.0	~	835.0
WCDMA	830F875F10N10FH	830.0	10	3.0	1.0	18	50	@	870.0	~	880.0	30.5	x	13.3	x	5.5
							36	@	852.5
		875.0	10	3.0	1.0	18	50	@	825.0	~	835.0
							36	@	852.5
WCDMA	830F875N10N10FA	830.0	10	1.8	1.8	20	50	@	870.0	~	880.0	42.5	x	18.0	x	9.5
		875.0	10	0.5	0.5	20	50	@	825.0	~	835.0
WCDMA	830F875N10N10FK	830.0	10	2.0	0.8	16	65	@	870.0	~	880.0	42.5	x	18.0	x	9.5
							38	@	852.5
		875.0	10	2.0	0.8	16	65	@	825.0	~	835.0
							35	@	852.5
WCDMA	830F875N10N10FU	830.0	10	2.0	0.8	18	55	@	870.0	~	880.0	42.5	x	18.0	x	9.5
							35	@	852.5
		875.0	10	2.0	0.8	18	55	@	825.0	~	835.0
							35	@	852.5
WCDMA	830F875R10N10FA	830.0	10	2.0	1.0	18	65	@	870.0	~	880.0	67.6	x	18.8	x	15.0
							40	@	852.5
		875.0	10	2.0	1.0	18	65	@	825.0	~	835.0
							40	@	852.5
WCDMA	830F875R10N10FC	830.0	10	1.2	0.5	18	60	@	870.0	~	880.0	67.6	x	18.8	x	15.0
							25	@	852.5
		875.0	10	1.2	0.5	18	60	@	825.0	~	835.0
							25	@	852.5

WCDMA	836F881F10N25FC	836.5	25	3.0	1.5	14	50	@	869.0	~	894.0	30.5	x	11.0	x	5.5
		881.5	25	3.0	1.5	14	50	@	824.0	~	849.0
WCDMA	836F881F10N25FE	836.5	25	3.2	1.5	13	45	@	869.0	~	894.0	30.5	x	11.5	x	5.5
							13	@	859.0
		881.5	25	3.2	1.5	13	45	@	824.0	~	849.0
							13	@	859.0
WCDMA	836F881F10N25FF	836.5	25	4.2	2.5	14	46	@	869.0	~	894.0	30.5	x	13.3	x	5.5
							20	@	859.0
		881.5	25	4.2	2.5	14	46	@	824.0	~	849.0
							20	@	859.0
WCDMA	836F881F10N25FJ	836.5	25	6.0	3.5	12	40	@	869.0	~	894.0	30.5	x	13.3	x	5.5
							30	@	859.0
		881.5	25	6.0	3.5	12	40	@	824.0	~	849.0
							30	@	859.0
WCDMA	836F881N10N25FB	836.5	25	2.0	1.0	15	60	@	869.0	~	894.0	42.5	x	17.5	x	9.5
							10	@	744.0
		881.5	25	2.0	1.0	15	60	@	824.0	~	849.0
							10	@	944.0
WCDMA	836F881N10N25FG	836.5	25	2.5	1.5	14	50	@	869.0	~	894.0	42.5	x	17.5	x	9.5
							25	@	859.0
		881.5	25	2.5	1.5	14	50	@	824.0	~	849.0
							25	@	859.0
WCDMA	836F881R10N25FD	836.5	25	2.0	0.6	17	50	@	869.0	~	894.0	67.6	x	18.8	x	15.0
		881.5	25	2.0	0.6	17	50	@	824.0	~	849.0
WCDMA	836R881N10N25FAB	836.5	25	1.9	0.7	18	45	@	869.0	~	894.0	42.5	x	17.5	x	9.5
							13	@	859.0	~	869.0
		881.5	25	1.9	0.7	18	45	@	824.0	~	849.0
							13	@	849.0	~	859.0
WCDMA	836R881N10N25FJ	836.5	25	3.0	2.0	14	50	@	869.0	~	894.0	67.6	x	18.8	x	15.0
		881.5	25	3.0	2.0	14	50	@	824.0	~	849.0

GSM	897F942F10N24FD	897.0	24	3.0	1.7	13	45	@	930.0	~	954.0	30.5	x	11.0	x	5.5
		942.0	24	3.0	1.7	13	45	@	885.0	~	909.0
GSM	897F942F10N24FG	897.0	24	3.0	1.2	14	35	@	930.0	~	954.0	30.5	x	13.3	x	5.5
		942.0	24	3.0	1.2	14	35	@	885.0	~	909.0
GSM	897F942F10N24FH	897.0	24	3.5	1.8	16	40	@	930.0	~	954.0	30.5	x	11.8	x	5.5
							16	@	919.5
		942.0	24	3.5	1.8	16	40	@	885.0	~	909.0
							16	@	919.5
GSM	897F942F10N24FJ	897.0	24	2.9	1.7	13	45	@	930.0	~	954.0	30.5	x	12.5	x	5.5
							10.5	@	919.5
		942.0	24	3.4	1.7	13	50.5	@	885.0	~	909.0
							8.5	@	919.5
GSM	897F942F10N24FK	897.0	24	3.0	1.2	14	40	@	930.0	~	954.0	30.5	x	11.0	x	5.5
							10	@	919.5
		942.0	24	3.0	1.2	14	40	@	885.0	~	909.0
							8	@	919.5
GSM	897F942F10N35FD	897.5	35	4.5	3.0	10	30	@	925.0	~	960.0	30.5	x	11.0	x	5.5
		942.5	35	4.5	3.0	10	30	@	880.0	~	915.0
GSM	897F942F10N35FE	897.5	35	4.0	2.0	2	20	@	925.0	~	960.0	30.5	x	11.5	x	5.5
		942.5	35	4.0	2.0	2	20	@	880.0	~	915.0
GSM	897F942N10N24FL	897.0	24	2.5	1.5	1.5	55	@	930.0	~	954.0	42.5	x	17.5	x	9.5
							20	@	919.5
		942.0	24	2.5	1.5	1.5	55	@	885.0	~	909.0
							20	@	919.5
GSM	897F942N10N24FO	897.0	24	3.5	2.0	1.5	50	@	930.0	~	954.0	42.5	x	17.5	x	9.5
							33	@	919.5
		942.0	24	3.5	2.0	1.5	50	@	885.0	~	909.0
							33	@	919.5
GSM	897F942N10N35FA	897.5	35	3.2	2.2	13	45	@	925.0	~	960.0	42.5	x	17.5	x	9.5
		942.5	35	3.2	2.2	13	45	@	880.0	~	915.0
GSM	897F942N10N35FB	897.5	35	4.0	3.0	13	55	@	925.0	~	960.0	42.5	x	17.5	x	9.5
		942.5	35	4.0	3.0	13	55	@	880.0	~	915.0
GSM	897F942N10N35FO	897.5	35	2.5	1.8	15	35	@	925.0	~	960.0	42.5	x	17.5	x	9.5
		942.5	35	2.5	1.8	15	35	@	880.0	~	915.0
GSM	897F942N10N35FT	897.5	35	6.0	5.0	14	40	@	925.0	~	960.0	42.5	x	17.5	x	9.5
							30	@	920.0
		942.5	35	6.0	5.0	14	40	@	880.0	~	915.0
							30	@	920.0
GSM	897F942N10N35FW	897.5	35	3.2	2.5	15	48.5	@	925.0	~	960.0	42.5	x	17.5	x	9.5
							14	@	920.0
		942.5	35	3.2	2.5	15	50	@	880.0	~	915.0
							14	@	920.0
GSM	897R942R10N35FD	897.5	35	3.0	2.0	18	45	@	925.0	~	960.0	42.5	x	17.5	x	9.5
							10	@	920.0
		942.5	35	3.0	2.0	18	45	@	880.0	~	915.0
							10	@	920.0

GSM	897F942R10N24FA	897.5	35	2.0	1.0	18	55	@	930.0	~	954.0	67.6	x	18.7	x	15.0
							10	@	919.5
		942.5	35	2.0	1.0	18	55	@	885.0	~	909.0
							10	@	919.5
GSM	897F942R10N24FE	897.0	24	2.0	1.2	18	55	@	930.0	~	954.0	67.6	x	18.7	x	15.0
							35	@	919.5
		942.0	24	2.0	1.2	18	55	@	885.0	~	909.0
							35	@	919.5
GSM	897F942R10N24FF	897.0	24	2.0	1.0	18	55	@	930.0	~	954.0	64.5	x	18.0	x	14.5
							18	@	919.5
		942.0	24	2.0	1.0	18	55	@	885.0	~	909.0
							18	@	919.5
GSM	897R942N10N24FU	897.0	24	2.0	1.0	18	55	@	930.0	~	954.0	42.5	x	17.5	x	9.5
							18	@	919.5
		942.0	24	2.0	1.0	18	55	@	885.0	~	909.0
							18	@	919.5

GSM	900F945F10N30FA	900.0	30	4.0	2.0	15	35	@	930.0	~	960.0	30.5	x	13.3	x	5.5
		945.0	30	4.0	2.0	15	35	@	885.0	~	915.0
GSM	900F945F10N30FC	900.0	30	4.0	2.5	13	35	@	930.0	~	960.0	30.5	x	11.0	x	5.5
							10	@	922.5
		945.0	30	4.0	2.5	13	35	@	885.0	~	915.0
							10	@	922.5
GSM	900F945N10N30FB	900.0	30	2.5	1.5	20	50	@	930.0	~	960.0	42.5	x	17.5	x	9.5
		945.0	30	2.5	1.5	20	50	@	885.0	~	915.0
GSM	900F945N10N30FE	900.0	30	2.2	1.2	20	47	@	930.0	~	960.0	42.5	x	17.5	x	9.5
		945.0	30	2.2	1.2	20	47	@	885.0	~	915.0
GSM	900F945N10N30FH	900.0	30	3.0	2.0	20	47	@	930.0	~	960.0	42.5	x	17.5	x	9.5
							25	@	922.5
		945.0	30	3.0	2.0	20	47	@	885.0	~	915.0
							25	@	922.5
GSM	900F945N10N30FI	900.0	30	2.2	0.8	20	40	@	930.0	~	960.0	42.5	x	17.5	x	9.5
		945.0	30	2.5	0.8	20	40	@	885.0	~	915.0
GSM	900F945N10N30FU	900.0	30	2.2	1.2	18	32	@	930.0	~	960.0	42.5	x	17.5	x	9.5
							30	@	800.0	~	830.0
		945.0	30	2.2	1.2	18	32	@	885.0	~	915.0
							30	@	985.0	~	1200.0

GSM	902F947N10N25FAB	902.5	25	3.5	2.3	18	55	@	935.0	~	960.0	44.0	x	13.5	x	9.5
							28	@	925.0
		947.5	25	3.5	2.3	18	55	@	890.0	~	915.0
							28	@	925.0
GSM	902F947N10N25FE	902.5	25	2.0	1.5	15	50	@	935.0	~	960.0	42.5	x	17.5	x	9.5
		947.5	25	2.0	1.5	15	50	@	890.0	~	915.0
GSM	902F947N10N25FW	902.5	25	2.5	1.5	16	50	@	935.0	~	960.0	42.5	x	17.5	x	9.5
							20	@	925.0
		947.5	25	2.5	1.5	16	50	@	890.0	~	915.0
							20	@	925.0
GSM	902F947R10N25FA	902.5	25	1.5	1.0	18	60	@	935.0	~	960.0	67.6	x	18.7	x	15.0
							25	@	925.0
		947.5	25	1.5	1.0	18	60	@	890.0	~	915.0
							25	@	925.0
GSM	902F947R10N25FC	902.5	25	2.0	1.0	18	58	@	935.0	~	960.0	67.6	x	18.7	x	15.0
							20	@	925.0
		947.5	25	2.0	1.0	15	60	@	890.0	~	915.0
							20	@	925.0

GSM	912F957F10N06FE	912.0	6	2.5	1.0	18	60	@	954.0	~	960.0	30.5	x	13.3	x	5.5
		957.0	6	2.5	1.0	18	60	@	909.0	~	915.0
GSM	912F957F10N06FF	912.0	6	3.0	1.5	18	50	@	954.0	~	960.0	30.5	x	11.0	x	5.5
							20	@	934.5
		957.0	6	3.0	1.5	18	50	@	909.0	~	915.0
							20	@	934.5
GSM	912F957F10N06FG	912.0	6	3.0	1.0	18	40	@	954.0	~	960.0	30.5	x	13.3	x	5.5
							18	@	934.5
		957.0	6	3.0	1.0	18	40	@	909.0	~	915.0
							18	@	934.5
GSM	912F957F10N06FH	912.0	6	2.5	1.0	18	60	@	954.0	~	960.0	30.5	x	11.0	x	5.5
							25	@	934.5
		957.0	6	2.5	1.0	18	60	@	909.0	~	915.0
							25	@	934.5
GSM	912F957N10N06FA	912.0	6	1.8	0.8	16	60	@	954.0	~	960.0	42.5	x	17.5	x	9.5
		957.0	6	1.8	0.8	16	60	@	909.0	~	915.0
GSM	912F957N10N06FQ	912.0	6	1.8	0.8	18	60	@	954.0	~	960.0	42.5	x	17.5	x	9.5
							35	@	934.5
		957.0	6	1.8	0.8	18	60	@	909.0	~	915.0
							35	@	934.5
GSM	912F957N10N06FS	912.0	6	1.8	0.5	18	60	@	954.0	~	960.0	42.5	x	17.5	x	9.5
							40	@	934.5
		957.0	6	1.8	0.5	18	60	@	909.0	~	915.0
							40	@	934.5

DCS	1732F1827F10N45FF	1732.5	45	3.0	1.0	18	45	@	1805.0	~	1850.0	30.5	x	9.3	x	5.5
							10	@	1780.0
		1827.5	45	3.0	1.0	18	45	@	1710.0	~	1755.0
							10	@	1780.0
DCS	1732F1827F10N45FG	1732.5	45	4.5	2.5	18	55	@	1805.0	~	1850.0	30.5	x	9.3	x	5.5
							30	@	1780.0
		1827.5	45	4.5	2.5	18	55	@	1710.0	~	1755.0
							30	@	1780.0
DCS	1732F1827F10N45FI	1732.5	45	3.0	2.0	15	50	@	1805.0	~	1850.0	30.5	x	13.3	x	5.5
							35	@	1780.0
		1827.5	45	3.0	2.0	15	50	@	1710.0	~	1755.0
							35	@	1780.0
DCS	1732F1827N10N45FB	1732.5	45	1.7	1.0	19	50	@	1805.0	~	1850.0	42.5	x	17.5	x	9.5
		1827.5	45	1.7	1.0	19	50	@	1710.0	~	1755.0
DCS	1732F1827N10N45FC	1732.5	45	2.5	1.5	19	55	@	1805.0	~	1850.0	42.5	x	17.5	x	9.5
							35	@	1780.0
		1827.5	45	2.5	1.5	19	55	@	1710.0	~	1755.0
							35	@	1780.0
DCS	1732F1827R10N25FA	1732.5	45	1.3	0.5	18	60	@	1805.0	~	1850.0	67.6	x	13.5	x	15.0
		1827.5	45	1.3	0.5	18	60	@	1710.0	~	1755.0

AWS	SRC1732F2132F10N45FB	1732.5	45	2.0	1.0	18	50	@	2110.0	~	2155.0	26.6	x	7.7	x	4.1
		2132.5	45	2.0	1.0	18	50	@	1710.0	~	1755.0

DCS	1747F1842F10N75FE	1747.5	75	3.4	2.3	12	30	@	1805.0	~	1880.0	30.5	x	9.3	x	5.5
		1842.5	75	3.7	2.4	12	30	@	1710.0	~	1785.0
DCS	1747F1842F10N75FF	1747.5	75	6.0	5.0	10	50	@	1805.0	~	1880.0	30.5	x	13.3	x	5.5
							20	@	1795.0
		1842.5	75	6.0	5.0	10	50	@	1710.0	~	1785.0
							20	@	1795.0
DCS	1747F1842F10N75FG	1747.5	75	3.5	2.0	13	35	@	1805.0	~	1880.0	30.5	x	9.3	x	5.5
							10	@	1795.0
		1842.5	75	4.0	2.5	13	35	@	1710.0	~	1785.0
							10	@	1795.0
DCS	1747F1842F10N75FJ	1747.5	75	3.2	2.0	13	30	@	1805.0	~	1880.0	30.5	x	9.3	x	5.5
		1842.5	75	3.5	2.5	13	30	@	1710.0	~	1785.0
DCS	1747F1842N10N75FAW	1747.5	75	4.2	3.2	14	50	@	1805.0	~	1880.0	42.5	x	13.5	x	5.5
							25	@	1795.0
		1842.5	75	4.2	3.2	14	50	@	1710.0	~	1785.0
							25	@	1795.0
DCS	1747F1842N10N75FH	1747.5	75	3.5	2.5	14	50	@	1805.0	~	1880.0	42.5	x	17.5	x	9.5
							20	@	1795.0
		1842.5	75	3.5	2.5	14	50	@	1710.0	~	1785.0
							20	@	1795.0
DCS	1747F1842N10N75FK	1747.5	75	2.5	1.1	15	30	@	1805.0	~	1880.0	42.5	x	17.5	x	9.5
							8	@	1795.0
		1842.5	75	2.5	1.2	15	30	@	1710.0	~	1785.0
							8	@	1795.0
DCS	1747F1842R10N75FC	1747.5	75	4.0	3.0	15	50	@	1805.0	~	1880.0	67.6	x	13.5	x	15.0
							23	@	1795.0
		1842.5	75	4.0	3.0	15	50	@	1710.0	~	1785.0
							23	@	1795.0
DCS	1747F1842R10N75FD	1747.5	75	3.5	2.5	15	55	@	1805.0	~	1880.0	67.6	x	18.7	x	15.0
							20	@	1795.0
		1842.5	75	3.5	2.5	15	55	@	1710.0	~	1785.0
							20	@	1795.0
DCS	1747F1842R10N75FE	1747.5	75	2.0	1.0	17	30	@	1805.0	~	1880.0	67.6	x	13.5	x	15.0
		1842.5	75	2.0	1.0	17	30	@	1710.0	~	1785.0

PCS	1880F1960F10N60FA	1880.0	60	3.7	2.8	10	40	@	1930.0	~	1990.0	30.5	x	9.3	x	5.5
							12	@	1920.0
		1960.0	60	4.5	2.8	10	40	@	1850.0	~	1910.0
							12	@	1920.0
PCS	1880F1960F10N60FB	1880.0	60	3.5	2.3	13	35	@	1930.0	~	1990.0	30.5	x	9.3	x	5.5
							10	@	1920.0
		1960.0	60	4.0	2.5	13	40	@	1850.0	~	1910.0
							10	@	1920.0
PCS	1880F1960F10N60FC	1880.0	60	3.5	2.3	13	35	@	1930.0	~	1990.0	30.5	x	9.3	x	5.5
							14	@	1920.0
		1960.0	60	4.0	2.5	13	40	@	1850.0	~	1910.0
							14	@	1920.0
PCS	1880F1960N10N60FD	1880.0	60	3.0	2.0	18	50	@	1930.0	~	1990.0	42.5	x	17.5	x	9.5
		1960.0	60	3.0	2.0	18	50	@	1850.0	~	1910.0
PCS	1880F1960N10N60FI	1880.0	60	3.5	2.0	9.5	50	@	1930.0	~	1990.0	42.5	x	17.5	x	9.5
		1960.0	60	3.5	2.0	9.5	50	@	1850.0	~	1910.0
PCS	1880F1960N10N60FL	1880.0	60	3.5	2.5	15	55	@	1930.0	~	1990.0	44.0	x	13.5	x	9.5
		1960.0	60	3.5	2.5	15	55	@	1850.0	~	1910.0
PCS	1880F1960N10N60FP	1880.0	60	3.0	2.0	9.5	50	@	1930.0	~	1990.0	42.5	x	17.5	x	9.5
							10	@	1920.0
		1960.0	60	3.0	2.0	9.5	50	@	1850.0	~	1910.0
							10	@	1920.0
PCS	1880F1960N10N60FR	1880.0	60	4.5	3.5	9.5	50	@	1930.0	~	1990.0	42.5	x	17.5	x	9.5
		1960.0	60	4.5	3.5	9.5	50	@	1850.0	~	1910.0
PCS	1880F1960R10N60FA	1880.0	60	3.0	2.0	16	50	@	1930.0	~	1990.0	67.6	x	13.5	x	15.0
		1960.0	60	3.0	2.0	16	50	@	1850.0	~	1910.0
PCS	1880F1960R10N60FB	1880.0	60	3.5	2.5	15	55	@	1930.0	~	1990.0	67.6	x	18.7	x	15.0
							20	@	1920.0
		1960.0	60	3.5	2.5	15	55	@	1850.0	~	1910.0
							20	@	1920.0
PCS	1880F1960R10N60FD	1880.0	60	2.0	1.0	18	30	@	1930.0	~	1990.0	67.6	x	13.5	x	15.0
		1960.0	60	2.0	1.0	18	30	@	1850.0	~	1910.0
PCS	1882F1962N10N65FB	1880.0	65	3.5	2.8	14	45	@	1930.0	~	1995.0	42.5	x	17.5	x	9.5
		1960.0	65	3.5	2.8	14	45	@	1850.0	~	1915.0
PCS	1882F1962N10N65FD	1880.0	65	3.5	2.5	14	45	@	1930.0	~	1995.0	42.5	x	17.5	x	9.5
							10	@	1922.5
		1960.0	65	3.5	2.5	14	45	@	1850.0	~	1915.0
							10	@	1922.5

WCDMA	1947F2137F10N15FC	1947.5	15	1.8	1.0	18	6	@	2130.0	~	2140.0	30.5	x	9.3	x	5.5
		2137.5	15	1.8	1.0	18	60	@	1940.0	~	1955.0
WCDMA	1947F2137R10N15FA	1947.5	15	1.0	0.5	18	55	@	2130.0	~	2140.0	67.6	x	18.7	x	15.0
							35	@	2042.5
		2137.5	15	1.0	0.5	18	55	@	1940.0	~	1955.0
							35	@	2042.5
WCDMA	1947F2137R10N15FB	1947.5	15	1.0	0.5	18	55	@	2130.0	~	2140.0	67.6	x	18.7	x	15.0
							35	@	2042.5
		2137.5	15	1.0	0.5	18	55	@	1940.0	~	1955.0
							35	@	2042.5

WCDMA	SRC1950F2140F10N60FN	1950.0	60	1.5	1.0	18	50	@	2110.0	~	2170.0	26.6	x	7.2	x	4.1
		2140.0	60	1.5	1.0	18	50	@	1920.0	~	1980.0
WCDMA	1950F2140F10N60FD	1950.0	60	1.5	0.5	18	45	@	2110.0	~	2170.0	30.5	x	9.3	x	5.5
							30	@	2045.0
		2140.0	60	1.5	0.5	18	45	@	1920.0	~	1980.0
							30	@	2045.0
WCDMA	1950F2140F10N60FJ	1950.0	60	2.0	0.7	18	55	@	2110.0	~	2170.0	30.5	x	9.3	x	5.5
							45	@	2045.0
		2140.0	60	2.0	0.7	18	55	@	1920.0	~	1980.0
							45	@	2045.0
WCDMA	1950F2140F10N60FT	1950.0	60	1.8	0.7	18	55	@	2110.0	~	2170.0	30.5	x	9.3	x	5.5
		2140.0	60	1.8	0.7	18	55	@	1920.0	~	1980.0
WCDMA	1950F2140N10N60FAA	1950.0	60	2.0	1.0	18	55	@	2110.0	~	2170.0	44.0	x	13.5	x	9.5
							40	@	2045.0
		2140.0	60	2.0	1.0	18	55	@	1920.0	~	1980.0
							40	@	2045.0
WCDMA	1950F2140N10N60FAB	1950.0	60	1.5	0.5	14	55	@	2110.0	~	2170.0	42.5	x	17.5	x	9.5
		2140.0	60	1.5	0.5	14	55	@	1920.0	~	1980.0
WCDMA	1950F2140N10N60FL	1950.0	60	2.0	1.0	14	55	@	2110.0	~	2170.0	42.5	x	17.5	x	9.5
							35	@	2045.0
		2140.0	60	2.0	1.0	14	55	@	1920.0	~	1980.0
							35	@	2045.0
WCDMA	1950F2140N10N60FN	1950.0	60	1.5	1.0	18	50	@	2110.0	~	2170.0	42.5	x	17.5	x	9.5
							30	@	2045.0
		2140.0	60	1.5	1.0	18	50	@	1920.0	~	1980.0
							30	@	2045.0
WCDMA	1950F2140N10N60FS	1950.0	60	2.0	1.0	18	55	@	2110.0	~	2170.0	42.5	x	17.5	x	9.5
							35	@	2045.0
		2140.0	60	2.0	1.0	18	55	@	1920.0	~	1980.0
							35	@	2045.0
WCDMA	1950F2140N10N60FU	1950.0	60	1.5	1.0	18	55	@	2110.0	~	2170.0	42.5	x	17.5	x	9.5
							30	@	2035.0	~	2055.0
		2140.0	60	1.5	1.0	18	55	@	1920.0	~	1980.0
							30	@	2035.0	~	2055.0
WCDMA	1950F2140R10N60FA	1950.0	60	1.0	0.5	16	60	@	2110.0	~	2170.0	67.6	x	13.5	x	15.0
							30	@	2045.0
		2140.0	60	1.0	0.4	16	60	@	1920.0	~	1980.0
							30	@	2045.0
WCDMA	1950F2140R10N60FC	1950.0	60	1.0	0.5	18	60	@	2110.0	~	2170.0	67.6	x	18.7	x	15.0
							40	@	2045.0
		2140.0	60	1.0	0.5	18	60	@	1920.0	~	1980.0
							40	@	2045.0
WCDMA	1950F2140R10N60FE	1950.0	60	1.0	0.5	18	60	@	2110.0	~	2170.0	67.6	x	18.7	x	15.0
							40	@	2045.0
		2140.0	60	1.0	0.5	18	60	@	1920.0	~	1980.0
							40	@	2045.0

特点	应用
使用高Q值谐振器获得的低损耗；	基站及直放站；
使用高介电常数材料获得更小的尺寸及更轻的重量；	PCS系统；
可靠地机械结构、无振动结构；	CDMA系统；
优良的温度稳定性；	DCS系统；
适用于表面贴装；	GSM系统；
频率范围：400～6000MHz	WCDMA系统；
功率范围：1~30W	TRS系统；
	TD-SCDMA系统；
	MMDS系统；

规格

应用系统	品名	中心频率	带宽	插损	波动	反射	衰减 (dB)					尺寸 (长 x 宽 x 高)毫米
WCDMA	827F872F10N15FA	827.5	15	3.0	1.5	18	45	@	865.0	~	880.0	30.5	x	13.3	x	5.5
		872.5	15	3.0	1.5	18	45	@	820.0	~	835.0
WCDMA	827F872F10N15FA	827.5	15	3.0	1.5	18	45	@	865.0	~	880.0	30.5	x	13.3	x	5.5
							25	@	850.0
		872.5	15	3.0	1.5	18	45	@	820.0	~	835.0
							25	@	850.0
WCDMA	827F872F10N15FD	827.5	15	3.0	2.0	14	50	@	865.0	~	880.0	30.5	x	13.3	x	5.5
							25	@	850.0
		875.5	15	3.0	2.0	14	50	@	820.0	~	835.0
							25	@	850.0
WCDMA	827F872F10N15FE	827.5	15	3.0	1.0	18	45	@	865.0	~	880.0	30.5	x	13.3	x	5.5
							25	@	850.0
		872.5	15	3.0	1.0	18	45	@	820.0	~	835.0
							25	@	850.0
WCDMA	827F872N10N15FB	827.5	15	1.8	0.8	16	55	@	865.0	~	880.0	42.5	x	18.0	x	9.5
		872.5	15	1.8	0.8	16	55	@	820.0	~	835.0
WCDMA	827F872N10N15FC	827.5	15	2.0	0.8	16	65	@	865.0	~	880.0	42.5	x	18.0	x	9.5
							35	@	850.0
		872.5	15	2.0	0.8	16	65	@	820.0	~	835.0
							35	@	850.0
WCDMA	827F872N10N15FH	827.5	15	2.2	1.0	18	60	@	865.0	~	880.0	42.5	x	18.0	x	9.5
							30	@	850.0
		872.5	15	2.2	1.0	18	60	@	820.0	~	835.0
							30	@	850.0
WCDMA	827F872R10N15FA	827.5	15	1.8	0.5	18	60	@	865.0	~	880.0	67.6	x	18.7	x	15.0
							25	@	850.0
		872.5	15	1.8	0.5	18	60	@	820.0	~	835.0
							25	@	850.0

WCDMA	830F875F10N10FB	830.0	10	3.0	1.5	18	47	@	870.0	~	880.0	30.5	x	13.3	x	5.5
		875.0	10	3.0	1.5	18	47	@	825.0	~	835.0
WCDMA	830F875F10N10FC	830.0	10	3.0	1.0	18	45	@	870.0	~	880.0	30.5	x	13.3	x	5.5
							5	@	845.0
		875.0	10	3.0	1.0	18	45	@	825.0	~	835.0
							5	@	845.0
WCDMA	830F875F10N10FE	830.0	10	3.0	1.0	18	50	@	870.0	~	880.0	30.5	x	10.7	x	5.5
		875.0	10	3.0	1.0	18	50	@	825.0	~	835.0
WCDMA	830F875F10N10FH	830.0	10	3.0	1.0	18	50	@	870.0	~	880.0	30.5	x	13.3	x	5.5
							36	@	852.5
		875.0	10	3.0	1.0	18	50	@	825.0	~	835.0
							36	@	852.5
WCDMA	830F875N10N10FA	830.0	10	1.8	1.8	20	50	@	870.0	~	880.0	42.5	x	18.0	x	9.5
		875.0	10	0.5	0.5	20	50	@	825.0	~	835.0
WCDMA	830F875N10N10FK	830.0	10	2.0	0.8	16	65	@	870.0	~	880.0	42.5	x	18.0	x	9.5
							38	@	852.5
		875.0	10	2.0	0.8	16	65	@	825.0	~	835.0
							35	@	852.5
WCDMA	830F875N10N10FU	830.0	10	2.0	0.8	18	55	@	870.0	~	880.0	42.5	x	18.0	x	9.5
							35	@	852.5
		875.0	10	2.0	0.8	18	55	@	825.0	~	835.0
							35	@	852.5
WCDMA	830F875R10N10FA	830.0	10	2.0	1.0	18	65	@	870.0	~	880.0	67.6	x	18.8	x	15.0
							40	@	852.5
		875.0	10	2.0	1.0	18	65	@	825.0	~	835.0
							40	@	852.5
WCDMA	830F875R10N10FC	830.0	10	1.2	0.5	18	60	@	870.0	~	880.0	67.6	x	18.8	x	15.0
							25	@	852.5
		875.0	10	1.2	0.5	18	60	@	825.0	~	835.0
							25	@	852.5

WCDMA	836F881F10N25FC	836.5	25	3.0	1.5	14	50	@	869.0	~	894.0	30.5	x	11.0	x	5.5
		881.5	25	3.0	1.5	14	50	@	824.0	~	849.0
WCDMA	836F881F10N25FE	836.5	25	3.2	1.5	13	45	@	869.0	~	894.0	30.5	x	11.5	x	5.5
							13	@	859.0
		881.5	25	3.2	1.5	13	45	@	824.0	~	849.0
							13	@	859.0
WCDMA	836F881F10N25FF	836.5	25	4.2	2.5	14	46	@	869.0	~	894.0	30.5	x	13.3	x	5.5
							20	@	859.0
		881.5	25	4.2	2.5	14	46	@	824.0	~	849.0
							20	@	859.0
WCDMA	836F881F10N25FJ	836.5	25	6.0	3.5	12	40	@	869.0	~	894.0	30.5	x	13.3	x	5.5
							30	@	859.0
		881.5	25	6.0	3.5	12	40	@	824.0	~	849.0
							30	@	859.0
WCDMA	836F881N10N25FB	836.5	25	2.0	1.0	15	60	@	869.0	~	894.0	42.5	x	17.5	x	9.5
							10	@	744.0
		881.5	25	2.0	1.0	15	60	@	824.0	~	849.0
							10	@	944.0
WCDMA	836F881N10N25FG	836.5	25	2.5	1.5	14	50	@	869.0	~	894.0	42.5	x	17.5	x	9.5
							25	@	859.0
		881.5	25	2.5	1.5	14	50	@	824.0	~	849.0
							25	@	859.0
WCDMA	836F881R10N25FD	836.5	25	2.0	0.6	17	50	@	869.0	~	894.0	67.6	x	18.8	x	15.0
		881.5	25	2.0	0.6	17	50	@	824.0	~	849.0
WCDMA	836R881N10N25FAB	836.5	25	1.9	0.7	18	45	@	869.0	~	894.0	42.5	x	17.5	x	9.5
							13	@	859.0	~	869.0
		881.5	25	1.9	0.7	18	45	@	824.0	~	849.0
							13	@	849.0	~	859.0
WCDMA	836R881N10N25FJ	836.5	25	3.0	2.0	14	50	@	869.0	~	894.0	67.6	x	18.8	x	15.0
		881.5	25	3.0	2.0	14	50	@	824.0	~	849.0

GSM	897F942F10N24FD	897.0	24	3.0	1.7	13	45	@	930.0	~	954.0	30.5	x	11.0	x	5.5
		942.0	24	3.0	1.7	13	45	@	885.0	~	909.0
GSM	897F942F10N24FG	897.0	24	3.0	1.2	14	35	@	930.0	~	954.0	30.5	x	13.3	x	5.5
		942.0	24	3.0	1.2	14	35	@	885.0	~	909.0
GSM	897F942F10N24FH	897.0	24	3.5	1.8	16	40	@	930.0	~	954.0	30.5	x	11.8	x	5.5
							16	@	919.5
		942.0	24	3.5	1.8	16	40	@	885.0	~	909.0
							16	@	919.5
GSM	897F942F10N24FJ	897.0	24	2.9	1.7	13	45	@	930.0	~	954.0	30.5	x	12.5	x	5.5
							10.5	@	919.5
		942.0	24	3.4	1.7	13	50.5	@	885.0	~	909.0
							8.5	@	919.5
GSM	897F942F10N24FK	897.0	24	3.0	1.2	14	40	@	930.0	~	954.0	30.5	x	11.0	x	5.5
							10	@	919.5
		942.0	24	3.0	1.2	14	40	@	885.0	~	909.0
							8	@	919.5
GSM	897F942F10N35FD	897.5	35	4.5	3.0	10	30	@	925.0	~	960.0	30.5	x	11.0	x	5.5
		942.5	35	4.5	3.0	10	30	@	880.0	~	915.0
GSM	897F942F10N35FE	897.5	35	4.0	2.0	2	20	@	925.0	~	960.0	30.5	x	11.5	x	5.5
		942.5	35	4.0	2.0	2	20	@	880.0	~	915.0
GSM	897F942N10N24FL	897.0	24	2.5	1.5	1.5	55	@	930.0	~	954.0	42.5	x	17.5	x	9.5
							20	@	919.5
		942.0	24	2.5	1.5	1.5	55	@	885.0	~	909.0
							20	@	919.5
GSM	897F942N10N24FO	897.0	24	3.5	2.0	1.5	50	@	930.0	~	954.0	42.5	x	17.5	x	9.5
							33	@	919.5
		942.0	24	3.5	2.0	1.5	50	@	885.0	~	909.0
							33	@	919.5
GSM	897F942N10N35FA	897.5	35	3.2	2.2	13	45	@	925.0	~	960.0	42.5	x	17.5	x	9.5
		942.5	35	3.2	2.2	13	45	@	880.0	~	915.0
GSM	897F942N10N35FB	897.5	35	4.0	3.0	13	55	@	925.0	~	960.0	42.5	x	17.5	x	9.5
		942.5	35	4.0	3.0	13	55	@	880.0	~	915.0
GSM	897F942N10N35FO	897.5	35	2.5	1.8	15	35	@	925.0	~	960.0	42.5	x	17.5	x	9.5
		942.5	35	2.5	1.8	15	35	@	880.0	~	915.0
GSM	897F942N10N35FT	897.5	35	6.0	5.0	14	40	@	925.0	~	960.0	42.5	x	17.5	x	9.5
							30	@	920.0
		942.5	35	6.0	5.0	14	40	@	880.0	~	915.0
							30	@	920.0
GSM	897F942N10N35FW	897.5	35	3.2	2.5	15	48.5	@	925.0	~	960.0	42.5	x	17.5	x	9.5
							14	@	920.0
		942.5	35	3.2	2.5	15	50	@	880.0	~	915.0
							14	@	920.0
GSM	897R942R10N35FD	897.5	35	3.0	2.0	18	45	@	925.0	~	960.0	42.5	x	17.5	x	9.5
							10	@	920.0
		942.5	35	3.0	2.0	18	45	@	880.0	~	915.0
							10	@	920.0

GSM	897F942R10N24FA	897.5	35	2.0	1.0	18	55	@	930.0	~	954.0	67.6	x	18.7	x	15.0
							10	@	919.5
		942.5	35	2.0	1.0	18	55	@	885.0	~	909.0
							10	@	919.5
GSM	897F942R10N24FE	897.0	24	2.0	1.2	18	55	@	930.0	~	954.0	67.6	x	18.7	x	15.0
							35	@	919.5
		942.0	24	2.0	1.2	18	55	@	885.0	~	909.0
							35	@	919.5
GSM	897F942R10N24FF	897.0	24	2.0	1.0	18	55	@	930.0	~	954.0	64.5	x	18.0	x	14.5
							18	@	919.5
		942.0	24	2.0	1.0	18	55	@	885.0	~	909.0
							18	@	919.5
GSM	897R942N10N24FU	897.0	24	2.0	1.0	18	55	@	930.0	~	954.0	42.5	x	17.5	x	9.5
							18	@	919.5
		942.0	24	2.0	1.0	18	55	@	885.0	~	909.0
							18	@	919.5

GSM	900F945F10N30FA	900.0	30	4.0	2.0	15	35	@	930.0	~	960.0	30.5	x	13.3	x	5.5
		945.0	30	4.0	2.0	15	35	@	885.0	~	915.0
GSM	900F945F10N30FC	900.0	30	4.0	2.5	13	35	@	930.0	~	960.0	30.5	x	11.0	x	5.5
							10	@	922.5
		945.0	30	4.0	2.5	13	35	@	885.0	~	915.0
							10	@	922.5
GSM	900F945N10N30FB	900.0	30	2.5	1.5	20	50	@	930.0	~	960.0	42.5	x	17.5	x	9.5
		945.0	30	2.5	1.5	20	50	@	885.0	~	915.0
GSM	900F945N10N30FE	900.0	30	2.2	1.2	20	47	@	930.0	~	960.0	42.5	x	17.5	x	9.5
		945.0	30	2.2	1.2	20	47	@	885.0	~	915.0
GSM	900F945N10N30FH	900.0	30	3.0	2.0	20	47	@	930.0	~	960.0	42.5	x	17.5	x	9.5
							25	@	922.5
		945.0	30	3.0	2.0	20	47	@	885.0	~	915.0
							25	@	922.5
GSM	900F945N10N30FI	900.0	30	2.2	0.8	20	40	@	930.0	~	960.0	42.5	x	17.5	x	9.5
		945.0	30	2.5	0.8	20	40	@	885.0	~	915.0
GSM	900F945N10N30FU	900.0	30	2.2	1.2	18	32	@	930.0	~	960.0	42.5	x	17.5	x	9.5
							30	@	800.0	~	830.0
		945.0	30	2.2	1.2	18	32	@	885.0	~	915.0
							30	@	985.0	~	1200.0

GSM	902F947N10N25FAB	902.5	25	3.5	2.3	18	55	@	935.0	~	960.0	44.0	x	13.5	x	9.5
							28	@	925.0
		947.5	25	3.5	2.3	18	55	@	890.0	~	915.0
							28	@	925.0
GSM	902F947N10N25FE	902.5	25	2.0	1.5	15	50	@	935.0	~	960.0	42.5	x	17.5	x	9.5
		947.5	25	2.0	1.5	15	50	@	890.0	~	915.0
GSM	902F947N10N25FW	902.5	25	2.5	1.5	16	50	@	935.0	~	960.0	42.5	x	17.5	x	9.5
							20	@	925.0
		947.5	25	2.5	1.5	16	50	@	890.0	~	915.0
							20	@	925.0
GSM	902F947R10N25FA	902.5	25	1.5	1.0	18	60	@	935.0	~	960.0	67.6	x	18.7	x	15.0
							25	@	925.0
		947.5	25	1.5	1.0	18	60	@	890.0	~	915.0
							25	@	925.0
GSM	902F947R10N25FC	902.5	25	2.0	1.0	18	58	@	935.0	~	960.0	67.6	x	18.7	x	15.0
							20	@	925.0
		947.5	25	2.0	1.0	15	60	@	890.0	~	915.0
							20	@	925.0

GSM	912F957F10N06FE	912.0	6	2.5	1.0	18	60	@	954.0	~	960.0	30.5	x	13.3	x	5.5
		957.0	6	2.5	1.0	18	60	@	909.0	~	915.0
GSM	912F957F10N06FF	912.0	6	3.0	1.5	18	50	@	954.0	~	960.0	30.5	x	11.0	x	5.5
							20	@	934.5
		957.0	6	3.0	1.5	18	50	@	909.0	~	915.0
							20	@	934.5
GSM	912F957F10N06FG	912.0	6	3.0	1.0	18	40	@	954.0	~	960.0	30.5	x	13.3	x	5.5
							18	@	934.5
		957.0	6	3.0	1.0	18	40	@	909.0	~	915.0
							18	@	934.5
GSM	912F957F10N06FH	912.0	6	2.5	1.0	18	60	@	954.0	~	960.0	30.5	x	11.0	x	5.5
							25	@	934.5
		957.0	6	2.5	1.0	18	60	@	909.0	~	915.0
							25	@	934.5
GSM	912F957N10N06FA	912.0	6	1.8	0.8	16	60	@	954.0	~	960.0	42.5	x	17.5	x	9.5
		957.0	6	1.8	0.8	16	60	@	909.0	~	915.0
GSM	912F957N10N06FQ	912.0	6	1.8	0.8	18	60	@	954.0	~	960.0	42.5	x	17.5	x	9.5
							35	@	934.5
		957.0	6	1.8	0.8	18	60	@	909.0	~	915.0
							35	@	934.5
GSM	912F957N10N06FS	912.0	6	1.8	0.5	18	60	@	954.0	~	960.0	42.5	x	17.5	x	9.5
							40	@	934.5
		957.0	6	1.8	0.5	18	60	@	909.0	~	915.0
							40	@	934.5

DCS	1732F1827F10N45FF	1732.5	45	3.0	1.0	18	45	@	1805.0	~	1850.0	30.5	x	9.3	x	5.5
							10	@	1780.0
		1827.5	45	3.0	1.0	18	45	@	1710.0	~	1755.0
							10	@	1780.0
DCS	1732F1827F10N45FG	1732.5	45	4.5	2.5	18	55	@	1805.0	~	1850.0	30.5	x	9.3	x	5.5
							30	@	1780.0
		1827.5	45	4.5	2.5	18	55	@	1710.0	~	1755.0
							30	@	1780.0
DCS	1732F1827F10N45FI	1732.5	45	3.0	2.0	15	50	@	1805.0	~	1850.0	30.5	x	13.3	x	5.5
							35	@	1780.0
		1827.5	45	3.0	2.0	15	50	@	1710.0	~	1755.0
							35	@	1780.0
DCS	1732F1827N10N45FB	1732.5	45	1.7	1.0	19	50	@	1805.0	~	1850.0	42.5	x	17.5	x	9.5
		1827.5	45	1.7	1.0	19	50	@	1710.0	~	1755.0
DCS	1732F1827N10N45FC	1732.5	45	2.5	1.5	19	55	@	1805.0	~	1850.0	42.5	x	17.5	x	9.5
							35	@	1780.0
		1827.5	45	2.5	1.5	19	55	@	1710.0	~	1755.0
							35	@	1780.0
DCS	1732F1827R10N25FA	1732.5	45	1.3	0.5	18	60	@	1805.0	~	1850.0	67.6	x	13.5	x	15.0
		1827.5	45	1.3	0.5	18	60	@	1710.0	~	1755.0

AWS	SRC1732F2132F10N45FB	1732.5	45	2.0	1.0	18	50	@	2110.0	~	2155.0	26.6	x	7.7	x	4.1
		2132.5	45	2.0	1.0	18	50	@	1710.0	~	1755.0

DCS	1747F1842F10N75FE	1747.5	75	3.4	2.3	12	30	@	1805.0	~	1880.0	30.5	x	9.3	x	5.5
		1842.5	75	3.7	2.4	12	30	@	1710.0	~	1785.0
DCS	1747F1842F10N75FF	1747.5	75	6.0	5.0	10	50	@	1805.0	~	1880.0	30.5	x	13.3	x	5.5
							20	@	1795.0
		1842.5	75	6.0	5.0	10	50	@	1710.0	~	1785.0
							20	@	1795.0
DCS	1747F1842F10N75FG	1747.5	75	3.5	2.0	13	35	@	1805.0	~	1880.0	30.5	x	9.3	x	5.5
							10	@	1795.0
		1842.5	75	4.0	2.5	13	35	@	1710.0	~	1785.0
							10	@	1795.0
DCS	1747F1842F10N75FJ	1747.5	75	3.2	2.0	13	30	@	1805.0	~	1880.0	30.5	x	9.3	x	5.5
		1842.5	75	3.5	2.5	13	30	@	1710.0	~	1785.0
DCS	1747F1842N10N75FAW	1747.5	75	4.2	3.2	14	50	@	1805.0	~	1880.0	42.5	x	13.5	x	5.5
							25	@	1795.0
		1842.5	75	4.2	3.2	14	50	@	1710.0	~	1785.0
							25	@	1795.0
DCS	1747F1842N10N75FH	1747.5	75	3.5	2.5	14	50	@	1805.0	~	1880.0	42.5	x	17.5	x	9.5
							20	@	1795.0
		1842.5	75	3.5	2.5	14	50	@	1710.0	~	1785.0
							20	@	1795.0
DCS	1747F1842N10N75FK	1747.5	75	2.5	1.1	15	30	@	1805.0	~	1880.0	42.5	x	17.5	x	9.5
							8	@	1795.0
		1842.5	75	2.5	1.2	15	30	@	1710.0	~	1785.0
							8	@	1795.0
DCS	1747F1842R10N75FC	1747.5	75	4.0	3.0	15	50	@	1805.0	~	1880.0	67.6	x	13.5	x	15.0
							23	@	1795.0
		1842.5	75	4.0	3.0	15	50	@	1710.0	~	1785.0
							23	@	1795.0
DCS	1747F1842R10N75FD	1747.5	75	3.5	2.5	15	55	@	1805.0	~	1880.0	67.6	x	18.7	x	15.0
							20	@	1795.0
		1842.5	75	3.5	2.5	15	55	@	1710.0	~	1785.0
							20	@	1795.0
DCS	1747F1842R10N75FE	1747.5	75	2.0	1.0	17	30	@	1805.0	~	1880.0	67.6	x	13.5	x	15.0
		1842.5	75	2.0	1.0	17	30	@	1710.0	~	1785.0

PCS	1880F1960F10N60FA	1880.0	60	3.7	2.8	10	40	@	1930.0	~	1990.0	30.5	x	9.3	x	5.5
							12	@	1920.0
		1960.0	60	4.5	2.8	10	40	@	1850.0	~	1910.0
							12	@	1920.0
PCS	1880F1960F10N60FB	1880.0	60	3.5	2.3	13	35	@	1930.0	~	1990.0	30.5	x	9.3	x	5.5
							10	@	1920.0
		1960.0	60	4.0	2.5	13	40	@	1850.0	~	1910.0
							10	@	1920.0
PCS	1880F1960F10N60FC	1880.0	60	3.5	2.3	13	35	@	1930.0	~	1990.0	30.5	x	9.3	x	5.5
							14	@	1920.0
		1960.0	60	4.0	2.5	13	40	@	1850.0	~	1910.0
							14	@	1920.0
PCS	1880F1960N10N60FD	1880.0	60	3.0	2.0	18	50	@	1930.0	~	1990.0	42.5	x	17.5	x	9.5
		1960.0	60	3.0	2.0	18	50	@	1850.0	~	1910.0
PCS	1880F1960N10N60FI	1880.0	60	3.5	2.0	9.5	50	@	1930.0	~	1990.0	42.5	x	17.5	x	9.5
		1960.0	60	3.5	2.0	9.5	50	@	1850.0	~	1910.0
PCS	1880F1960N10N60FL	1880.0	60	3.5	2.5	15	55	@	1930.0	~	1990.0	44.0	x	13.5	x	9.5
		1960.0	60	3.5	2.5	15	55	@	1850.0	~	1910.0
PCS	1880F1960N10N60FP	1880.0	60	3.0	2.0	9.5	50	@	1930.0	~	1990.0	42.5	x	17.5	x	9.5
							10	@	1920.0
		1960.0	60	3.0	2.0	9.5	50	@	1850.0	~	1910.0
							10	@	1920.0
PCS	1880F1960N10N60FR	1880.0	60	4.5	3.5	9.5	50	@	1930.0	~	1990.0	42.5	x	17.5	x	9.5
		1960.0	60	4.5	3.5	9.5	50	@	1850.0	~	1910.0
PCS	1880F1960R10N60FA	1880.0	60	3.0	2.0	16	50	@	1930.0	~	1990.0	67.6	x	13.5	x	15.0
		1960.0	60	3.0	2.0	16	50	@	1850.0	~	1910.0
PCS	1880F1960R10N60FB	1880.0	60	3.5	2.5	15	55	@	1930.0	~	1990.0	67.6	x	18.7	x	15.0
							20	@	1920.0
		1960.0	60	3.5	2.5	15	55	@	1850.0	~	1910.0
							20	@	1920.0
PCS	1880F1960R10N60FD	1880.0	60	2.0	1.0	18	30	@	1930.0	~	1990.0	67.6	x	13.5	x	15.0
		1960.0	60	2.0	1.0	18	30	@	1850.0	~	1910.0
PCS	1882F1962N10N65FB	1880.0	65	3.5	2.8	14	45	@	1930.0	~	1995.0	42.5	x	17.5	x	9.5
		1960.0	65	3.5	2.8	14	45	@	1850.0	~	1915.0
PCS	1882F1962N10N65FD	1880.0	65	3.5	2.5	14	45	@	1930.0	~	1995.0	42.5	x	17.5	x	9.5
							10	@	1922.5
		1960.0	65	3.5	2.5	14	45	@	1850.0	~	1915.0
							10	@	1922.5

WCDMA	1947F2137F10N15FC	1947.5	15	1.8	1.0	18	6	@	2130.0	~	2140.0	30.5	x	9.3	x	5.5
		2137.5	15	1.8	1.0	18	60	@	1940.0	~	1955.0
WCDMA	1947F2137R10N15FA	1947.5	15	1.0	0.5	18	55	@	2130.0	~	2140.0	67.6	x	18.7	x	15.0
							35	@	2042.5
		2137.5	15	1.0	0.5	18	55	@	1940.0	~	1955.0
							35	@	2042.5
WCDMA	1947F2137R10N15FB	1947.5	15	1.0	0.5	18	55	@	2130.0	~	2140.0	67.6	x	18.7	x	15.0
							35	@	2042.5
		2137.5	15	1.0	0.5	18	55	@	1940.0	~	1955.0
							35	@	2042.5

WCDMA	SRC1950F2140F10N60FN	1950.0	60	1.5	1.0	18	50	@	2110.0	~	2170.0	26.6	x	7.2	x	4.1
		2140.0	60	1.5	1.0	18	50	@	1920.0	~	1980.0
WCDMA	1950F2140F10N60FD	1950.0	60	1.5	0.5	18	45	@	2110.0	~	2170.0	30.5	x	9.3	x	5.5
							30	@	2045.0
		2140.0	60	1.5	0.5	18	45	@	1920.0	~	1980.0
							30	@	2045.0
WCDMA	1950F2140F10N60FJ	1950.0	60	2.0	0.7	18	55	@	2110.0	~	2170.0	30.5	x	9.3	x	5.5
							45	@	2045.0
		2140.0	60	2.0	0.7	18	55	@	1920.0	~	1980.0
							45	@	2045.0
WCDMA	1950F2140F10N60FT	1950.0	60	1.8	0.7	18	55	@	2110.0	~	2170.0	30.5	x	9.3	x	5.5
		2140.0	60	1.8	0.7	18	55	@	1920.0	~	1980.0
WCDMA	1950F2140N10N60FAA	1950.0	60	2.0	1.0	18	55	@	2110.0	~	2170.0	44.0	x	13.5	x	9.5
							40	@	2045.0
		2140.0	60	2.0	1.0	18	55	@	1920.0	~	1980.0
							40	@	2045.0
WCDMA	1950F2140N10N60FAB	1950.0	60	1.5	0.5	14	55	@	2110.0	~	2170.0	42.5	x	17.5	x	9.5
		2140.0	60	1.5	0.5	14	55	@	1920.0	~	1980.0
WCDMA	1950F2140N10N60FL	1950.0	60	2.0	1.0	14	55	@	2110.0	~	2170.0	42.5	x	17.5	x	9.5
							35	@	2045.0
		2140.0	60	2.0	1.0	14	55	@	1920.0	~	1980.0
							35	@	2045.0
WCDMA	1950F2140N10N60FN	1950.0	60	1.5	1.0	18	50	@	2110.0	~	2170.0	42.5	x	17.5	x	9.5
							30	@	2045.0
		2140.0	60	1.5	1.0	18	50	@	1920.0	~	1980.0
							30	@	2045.0
WCDMA	1950F2140N10N60FS	1950.0	60	2.0	1.0	18	55	@	2110.0	~	2170.0	42.5	x	17.5	x	9.5
							35	@	2045.0
		2140.0	60	2.0	1.0	18	55	@	1920.0	~	1980.0
							35	@	2045.0
WCDMA	1950F2140N10N60FU	1950.0	60	1.5	1.0	18	55	@	2110.0	~	2170.0	42.5	x	17.5	x	9.5
							30	@	2035.0	~	2055.0
		2140.0	60	1.5	1.0	18	55	@	1920.0	~	1980.0
							30	@	2035.0	~	2055.0
WCDMA	1950F2140R10N60FA	1950.0	60	1.0	0.5	16	60	@	2110.0	~	2170.0	67.6	x	13.5	x	15.0
							30	@	2045.0
		2140.0	60	1.0	0.4	16	60	@	1920.0	~	1980.0
							30	@	2045.0
WCDMA	1950F2140R10N60FC	1950.0	60	1.0	0.5	18	60	@	2110.0	~	2170.0	67.6	x	18.7	x	15.0
							40	@	2045.0
		2140.0	60	1.0	0.5	18	60	@	1920.0	~	1980.0
							40	@	2045.0
WCDMA	1950F2140R10N60FE	1950.0	60	1.0	0.5	18	60	@	2110.0	~	2170.0	67.6	x	18.7	x	15.0
							40	@	2045.0
		2140.0	60	1.0	0.5	18	60	@	1920.0	~	1980.0
							40	@	2045.0

联系我们
