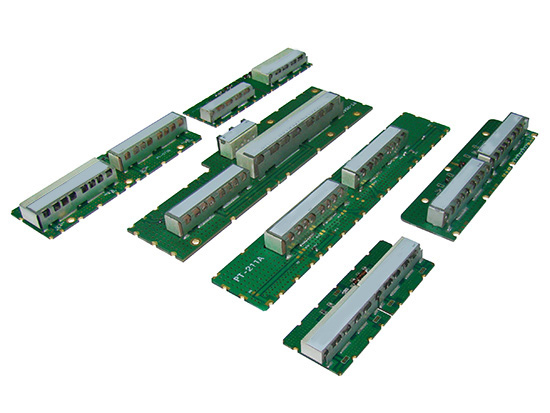

介质模块_四通道

全国服务热线：+0086-158-62532747


特点	应用
不同尺寸设计频率范围宽	CDMA Wibro
温度补偿	CDMA WCDMA
低插入损耗	CDMA DCS
低成本客户订制	CDMA DCS WCDMA
高机械强度	GSM LTE
频率范围：100～3000MHz	GSM DCS WCDMA
功率范围：1~30W	DCS TD-SCMA
	DCS TD-SCMA LTE

规格

应用系统	品名	中心频率	带宽	插损	波动	反射	衰减 (dB)					尺寸 (长 x 宽 x 高)厘米

CDMA+DCS	6J852R6J1812FA	830	10	2.5	1	16	50	@	870	~	880	67.0	x	22.5	x	7.5
							40	@	1755	~	1775
							40	@	1850	~	1870
		875	10	2.5	1	16	50	@	825	~	835
							40	@	1755	~	1775
							40	@	1850	~	1870
		1765	20	2.5	1	16	40	@	825	~	835
							40	@	870	~	880
							50	@	1850	~	1870
		1860	20	2.5	1	16	45	@	825	~	835
							45	@	870	~	880
							50	@	1755	~	1775
GSM+WCDMA	6J934R6J2050FA	912	6	2.5	0.8	18	55	@	954	~	960	66.5	x	22.5	x	7.5
							40	@	1940	~	1970
							45	@	2130	~	2160
		957	6	2.5	0.8	18	55	@	909	~	915
							40	@	1940	~	1970
							45	@	2160	~	2160
		1955	30	2.5	0.5	18	50	@	2130	~	2160
							55	@	909	~	915
							55	@	954	~	960
		2145	30	2.5	0.5	18	50	@	1940	~	1970
							55	@	909	~	915
							55	@	954	~	960
DCS+WCDMA	6J1795R6J2045FB	1747.5	75	5.2	3.4	15	50	@	1805	~	1880	67.0	x	31.0	x	8.2
							50	@	1920	~	1980
							50	@	2110	~	2170
		1842.5	75	5.2	3.1	15	45	@	1708	~	1783
							45	@	1920	~	1980
							50	@	2110	~	2170
		1950	60	3.5	1	18	50	@	2110	~	2170
							55	@	1708	~	1783
							55	@	1805	~	1880
		2140	60	3.5	1	18	50	@	1920	~	1980
							55	@	1708	~	1786
							55	@	1805	~	1880
DCS+WCDMA	6J1817R6J2050FA	1770	30	2.5	1	18	50	@	1850	~	1880	67.0	x	22.5	x	7.5
							40	@	1940	~	1970
							40	@	2130	~	2160
		1865	30	2.7	1	18	50	@	1755	~	1785
							35	@	1940	~	1970
							40	@	2130	~	2160
		1955	30	2.7	1	18	40	@	1755	~	1785
							35	@	1850	~	1880
							50	@	2130	~	2160
		2145	30	2.5	1	18	45	@	1755	~	1785
							45	@	1850	~	1880
							50	@	1940	~	1970
DCS+WCDMA	6J2050R6J1792FB	1745	20	2.5	1	16	50	@	1830	~	1850	67.0	x	22.5	x	7.5
							40	@	1940	~	1970
							40	@	2130	~	2160
		1840	20	2.5	1	16	50	@	1735	~	1755
							40	@	1940	~	1970
							40	@	2130	~	2160
		1955	30	2.5	1	16	37	@	1735	~	1755
							33	@	1830	~	1850
							50	@	2130	~	2160
		2145	30	2.5	1	16	45	@	1735	~	1755
							45	@	1830	~	1850
							50	@	1940	~	1970
LTE变频应用系统	8J677F8J772FA	664	10	2.8	0.7	18	50	@	685	~	698	86.5	x	28.5	x	9.5
							47	@	720	~	770
							55	@	794	~	804
		690	10	2.8	0.7	18	50	@	659	~	669
							37	@	720	~	770
							50	@	794	~	804
		745	50	3	1.5	12	50	@	794	~	804
							38	@	659	~	669
							35	@	685	~	698
		799	10	2	0.5	18	50	@	720	~	770
							49	@	659	~	669
							49	@	685	~	695
GSM+TD-SCMA+LTE	8J921F8J2181FA	899	20	2.5	1	14	50	@	934	~	954	86.5	x	28.5	x	9.5
							50	@	2010	~	2025
							50	@	2320	~	2370
		944	20	2.5	1	14	50	@	889	~	909
							50	@	2010	~	2025
							50	@	2320	~	2370
		2017.5	15	2.5	0.5	14	50	@	2320	~	2370
							60	@	889	~	909
							60	@	934	~	954
		2345	50	2.5	0.5	14	50	@	2010	~	2025
							60	@	889	~	909
							60	@	934	~	954
GSM+WCDMA	8J922R8J2042FA	900	30	2.5	1	14	50	@	930	~	960	86.5	x	28.5	x	9.5
							50	@	1940	~	1955
							50	@	2130	~	2145
		945	30	2.5	1	14	50	@	885	~	915
							50	@	1940	~	1955
							50	@	2130	~	2145
		1947.5	15	2.5	0.5	14	50	@	2130	~	2145
							50	@	930	~	960
							50	@	885	~	915
		2137.5	15	2.5	0.5	14	50	@	1940	~	1955
							50	@	885	~	915
							50	@	930	~	960
GSM+DCS	8J925F8J1795RA	902.5	25	2.7	1.2	18	55	@	935	~	960	87.0	x	29.0	x	9.5
							50	@	1710	~	1785
		947.5	25	2.7	1.2	18	55	@	890	~	915
							50	@	1805	~	1880
		1747.5	75	3.5	2.2	18	48.5	@	1805	~	1880
							50	@	935	~	960
		1842.5	75	3.5	2.2	18	48.5	@	1710	~	1785
							50	@	935	~	960
GSM+WCDMA	8J925F8J2045FA	902.5	25	3.5	2	18	55	@	935	~	960	87.0	x	29.0	x	9.5
							50	@	1920	~	1980
							50	@	2110	~	2170
		947.5	25	3.5	2	18	55	@	890	~	915
							50	@	1920	~	1980
							50	@	2110	~	2170
		1950	60	2.5	0.3	18	50	@	935	~	960
							50	@	890	~	915
							50	@	2110	~	2170
		2140	60	2.5	0.3	18	55	@	1920	~	1980
							50	@	890	~	915
							50	@	935	~	960
GSM+WCDMA	8J934F8J2050FB	912	6	2.5	0.8	18	55	@	954	~	960	87.0	x	36.0	x	10.0
							40	@	1940	~	1970
							45	@	2130	~	2160
		957	6	2.5	0.8	18	55	@	909	~	915
							40	@	1940	~	1970
							45	@	2130	~	2160
		1955	30	2.8	0.6	18	50	@	909	~	915
							55	@	954	~	960
							55	@	21030	~	2160
		2145	30	2.8	0.6	18	50	@	909	~	915
							55	@	954	~	960
							55	@	1940	~	1970
PCS	8J1932R10L1922RA	1882.5	65	5	2.5	15	45	@	1930	~	1995	108.5	x	30.5	x	13.0
							50	@	1710	~	1755
							50	@	2110	~	2155
		1962.5	65	5	2.5	15	45	@	1850	~	1915
							50	@	1710	~	1755
							50	@	2110	~	2155
		1732.5	45	5	2.5	15	55	@	2110	~	2155
							45	@	1850	~	1915
							50	@	1930	~	1995
		2132.5	45	5	2.5	15	55	@	1710	~	1755
							43	@	1850	~	1915
							45	@	1930	~	1995
